Strong Boy Roof Bars x 3 (Jimny 3-Door)

NZD 890.00

You can’t go wrong with 3 of our Strong Boy Bars. Great for long loads, shorter loads, and a strong base for roof top tents. A combined weight of just 8.5kg total. A tough look for your Suzuki Jimny JB74.

Engineered strong – to handle anything you’d ever want to load on a Jimny.
Fast and secure loading. These bars are made to work seamlessly with our Quick Clip strapping system, and generic tie-downs.
For seamless awning attachment check out our quick release awning brackets for side awnings. Or custom 270/freestanding awning brackets here.
Fully equipped to fit T-slot mounted accessories – like bike/ski racks, canoe carriers, and rooftop tents.
Quickest install around. Our bars are made to measure for the Jimny, so there’s no need to adjust length or height. Just drop them on and clamp up. Approx 2 minutes per bar – quicker than you can say Jim.
A strong base for the Inbetweener Stubby – attach our lightweight platform between two bars.
Integrated windbreaker on front bar – reducing wind noise to a minimal level.
Protective rubber on bar clamp/foot – unlike many roof racks, these will keep your roof gutters damage-free.
Rooftop tent attachment – check out this kit.
Heavy Duty Guarantee.
Made in New Zealand, and tested on the tracks.

Engineered strong – to handle anything you’d ever want to load on a Jimny.
Fast and secure loading. These bars are made to work seamlessly with our Quick Clip strapping system, and generic tie-downs.
For seamless awning attachment check out our quick release awning brackets for side awnings. Or custom 270/freestanding awning brackets here.
Fully equipped to fit T-slot mounted accessories – like bike/ski racks, canoe carriers, and rooftop tents.
Quickest install around. Our bars are made to measure for the Jimny, so there’s no need to adjust length or height. Just drop them on and clamp up. Approx 2 minutes per bar – quicker than you can say Jim.
A strong base for the Inbetweener Stubby – attach our lightweight platform between two bars.
Integrated windbreaker on front bar – reducing wind noise to a minimal level.
Protective rubber on bar clamp/foot – unlike many roof racks, these will keep your roof gutters damage-free.
Rooftop tent attachment – check out this kit.
Heavy Duty Guarantee.
Made in New Zealand, and tested on the tracks.

from NZD 89.00

Length:

Collection of brackets for attaching awning to roof rack

Brackets for attaching awning to Mighty Smart Roof Rack

from NZD 109.00

Kit type:

Inbetweener Stubby Roof Platform (Jimny 5-Door & JB74)

Inbetweener Stubby Roof Platform (Jimny 5-Door & JB74)

from NZD 419.00

from NZD 159.00

Kit type:

Specifications & FAQs

- 1 x Front Bar with windbreaker
- 1 x Middle Bar
- 1 x Rear Bar
- 3-Way Hex Key (only tool required for install)
- User-friendly instructions
- Skinny Jim stickers
Compatible with all Suzuki Jimny 3-Door (2018-now)

For the Suzuki Jimny-5 Door, choose our purpose-built Jimny 5-Door 3-bar set.
Bar length: 1350mm
Bar width: 60mm
Bar height: 40mm (not including gutter-mounted clamps)

Clearance to roof: 20-35mm depending on area of roof.

Total weight of 3 bars: 8.5kg
Marine-grade aluminium construction, stainless steel fixings.

Premium textured powder-coat finish. Scuff-resistant, UV-resistant, salt- resistant – for New Zealand’s harsh conditions.

Built to last, not to rust.
Static load rated to 300kg for this 3 bar set. 100kg per bar.

In terms of the dynamic load rating, we don’t recommend exceeding Suzuki’s stated 30kg total roof load limit for the Jimny.

For added confidence, our roof bars/racks are engineered with a substantial safety margin beyond this 30kg figure, and tested thoroughly off-road.

They are engineered to meet the International Roof Rack Standards ISO 11154.
We include a spacing guide with bars spaced to a maximum of 600mm centre-to-centre, with the middle bar aligned with the door gap. A narrower spacing works great too.

Be wary of the maximum recommended forward position for the front bar, which is 600mm from the door gap to centre of the bar. Shifting the front bar beyond this can create wind resonance.
With this 3 bar configuration, the best fit is the Inbetweener Stubby. The Stubby requires a 725mm spacing, which means 2 bars will be spaced slightly wider, and the other narrower.
Our Skinny Jim awning brackets are designed to give you a fast, simple and secure fit to our bars, and are practically universal.

For traditional pull-out side awnings, use our Quick Release Side Awning Brackets.
For 270°/Freestanding awnings with conventional attachment (ie. 2 or 3 bolt channels at back of awning) use our purpose built 270° awning brackets.

The awning manufacturer’s provided brackets can also work fine but, depending on the hole spacing of the brackets, drilling may be required.
With a static load rating of 300kg, this 3 bar kit is are built to support the weight of a roof top tent without any issues. Many favour the 3 bar kit for the support the middle bar provides to the base of the tent, preventing any flexing.
However it is worth noting Suzuki’s stated 30kg dynamic roof load rating for the Jimny. Most rooftop tents will put you comfortably over this limit, and we can’t recommend you exceed it.

If you do decide a rooftop tent is the right option for you, you have two methods to attach to our bars.
1. Use the manufacturer-supplied clamps. Be sure to check the manufacturer’s maximum bar width and height first, and required roof clearance.
2. If the clamps don’t fit around the bars, or you prefer a more secure attachment method – use our RTT Direct Attachment Kit.

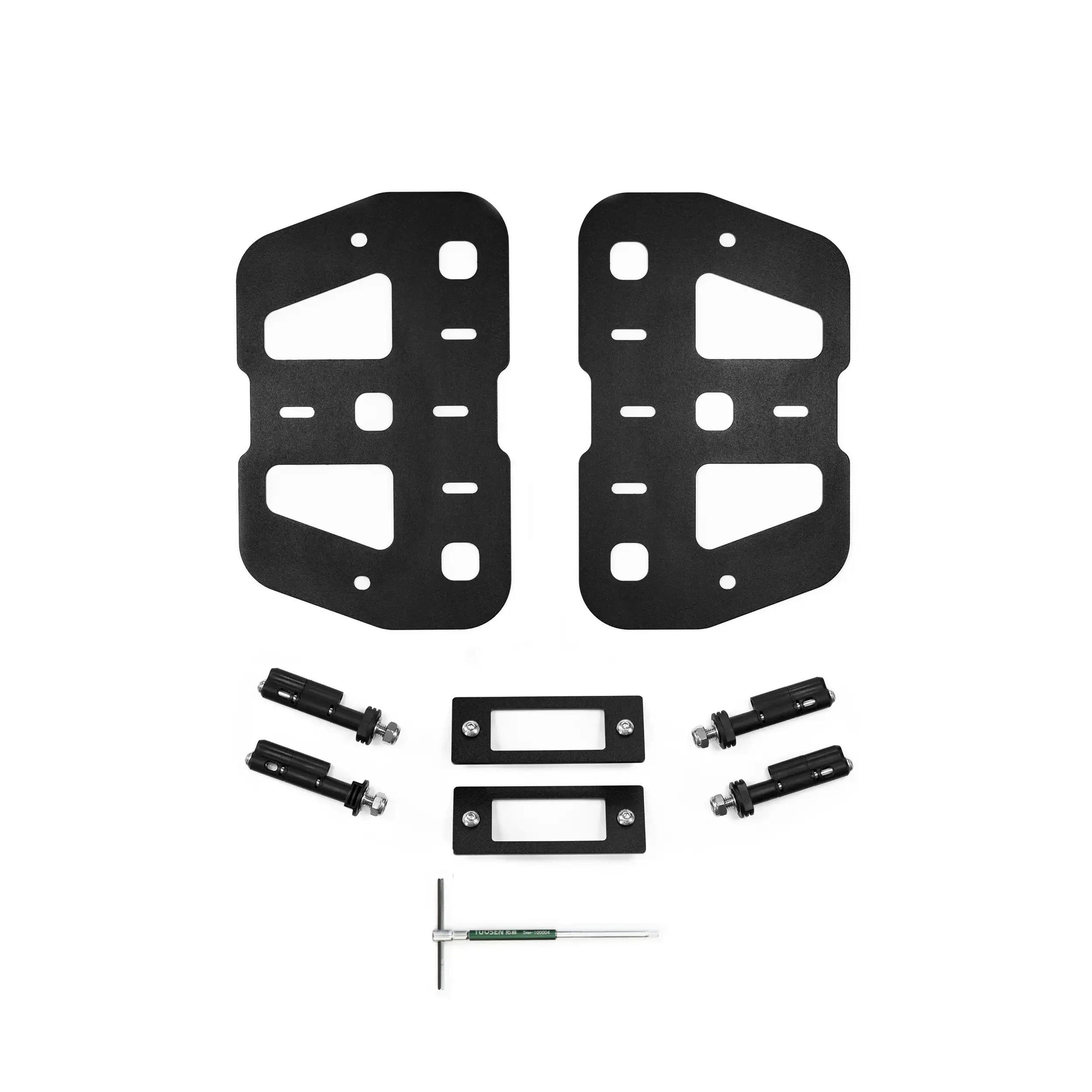

One option is our Magic Mount, which is designed to attach Maxtrax lengthways along the bar or between two bars (with a narrower spacing).

Note these are designed for Maxtrax, but may work with other recovery tracks that share the same hole spacing and locking pin design.

The Inbetweener Stubby can also mount Maxtrax (Lite and Mini lengths) using the same mounting pin method, while giving you loads more utility.

17mm Maxtrax Mounting Pins are required for both methods.
